PRO Quad Row LED Wheel Rings
Transform your wheels with vibrant multicolor LED lighting
Why You'll Love This Mod
Millions of Colors
Vibrant color options with dynamic chasing effects
Dual Control
Control with your phone or remote — both included
Ultra Bright
Four-row LED design for unmatched brightness
Easy Installation
Universal fit brackets for simple setup
Universal Application
Adds aggressive styling to any car, truck, or SUV
Warranty Protection
1-year warranty + optional EXTEND protection
Transform Your Ride with PRO Quad Row LED Wheel Rings
Give your wheels a serious glow-up with the 4 Row LED Wheel Ring Kit. Designed to mount around your vehicle's brake rotors, these multicolor LED rings create a show-stopping look that turns heads whether you're parked or in motion.
With smooth flow-style color transitions and dynamic effects, you'll stand out at car meets, night drives, or any time you're flexing your build. From crisp white to wild color chases synced to your music, this is the ultimate lighting upgrade for any enthusiast.
Full Multicolor + Flow Effects
- Flow Series LED Tech — 120+ chasing effects with color transitions
- Solid Colors — Red, green, blue, yellow, orange, pink, purple
- Bright bluish-white (approx. 6500K) output
- Music Sync + Speed & Brightness Control
- Bluetooth App + RF Remote Included

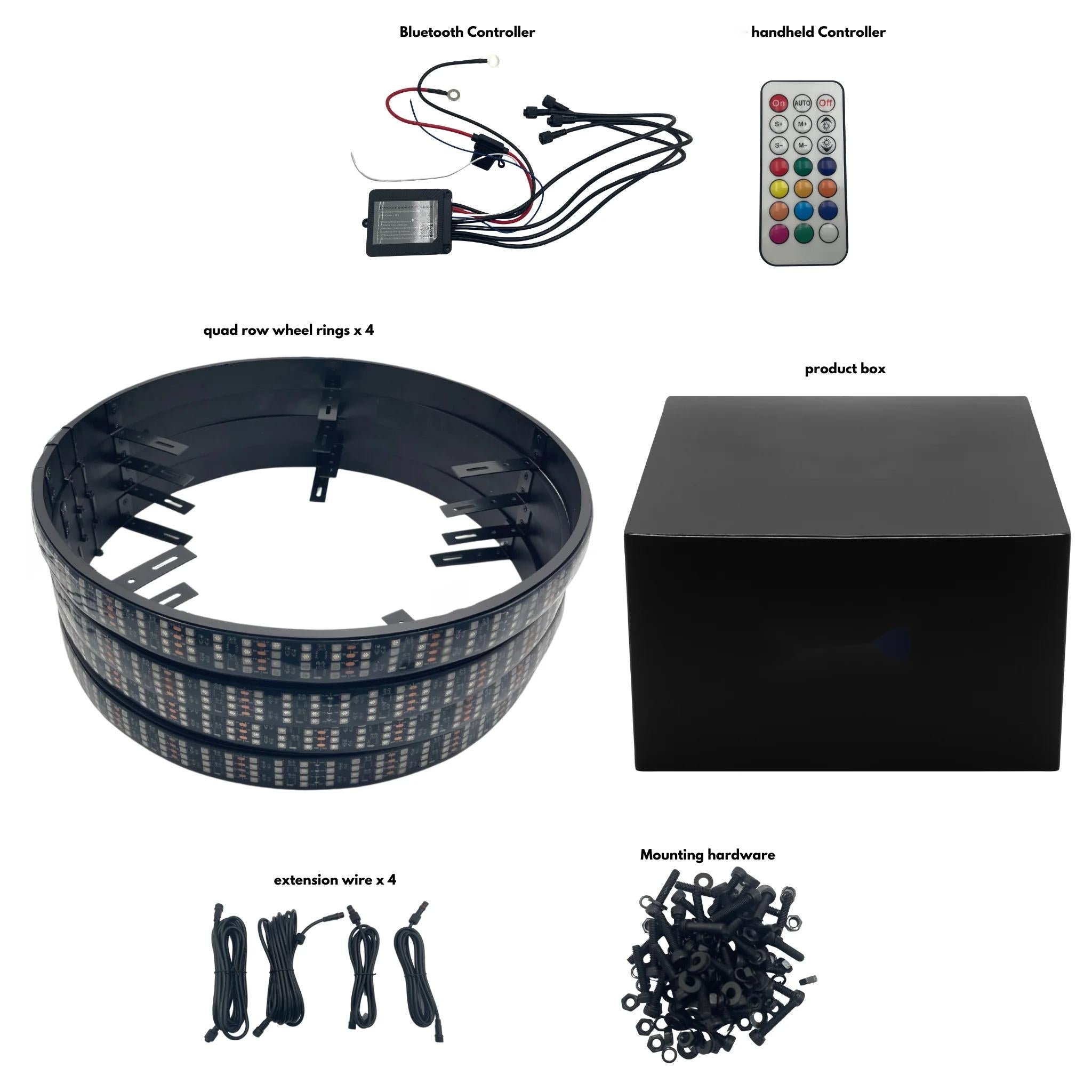

What's Included
- 4x Quad-Row LED Wheel Rings (Driver + Passenger side, Front + Rear)
- 1x 2-in-1 Hybrid LED Controller (Bluetooth + RF Remote)
- Mounting Brackets (Black finish)
- Wiring Extensions & Zip Ties
- Quick Start Wiring Guide
- QR Code linking to full installation guide
Installation & Operation
Important Information About Your Remote/Relay System
A remote/relay system is embedded within the controller and is designed to protect your vehicle's battery while providing convenient control of your LED lights.
Key Points to Remember:
- The relay should normally stay in the "ON" position for regular use
- Only use the "OFF" function when parking your vehicle for extended periods (5+ days)
- The "OFF" setting helps prevent battery drain during long-term parking
Daily Operation
- Keep the relay switch remote in the "ON" position for normal daily use
- Use your app or remote control to operate the lights as needed
- No need to turn the relay off between regular daily drives
- Power the controller directly to battery or 12v source
Extended Parking (5+ Days)
- Switch the relay to "OFF" position before long-term parking
- This prevents any standby power draw from affecting your battery
- Remember to switch back to "ON" when you resume regular vehicle use
Note: If your lights aren't responding to the remote, first check if the relay is in the "ON" position before contacting support.
Installation Tips
After installing the wheel ring brackets and strips, connect the extension wire to the end of the strip that says DI on it (for Data In) and route it to the vehicle's engine bay. Be sure to leave some slack around the vehicle's control arms to ensure the extension wire has room to move while the vehicle is turning. Securely fasten the extension wire with zip ties to keep it in place.
Please note that the longer extension wires are to be used on the wheel lights located on the rear wheels.
Next, connect the extension wire to one of the open connectors from the LED controller.
The LED controller requires a 12-volt power source in order to function. The red wire with the in-line fuse is the 12-volt positive wire. This can be tapped into your desired 12-volt fuse source on the vehicle or spliced into a 12-volt source of your choice. It can also be connected directly to the vehicle's battery.
The black wire is the ground wire. This can be connected or spliced to any ground wire or source on your vehicle, including the vehicle frame ground.
The blue wire is an optional connection that taps into your brake light signal wire. When the brakes are applied, the wheel lights automatically switch to red. When the brakes are inactive, the lights will switch to the previous color or pattern.
Specifications
| Product Type | Quad Row LED Wheel Ring Kit |
| LED Count | 4 rows per wheel |
| Color Options | Full RGB spectrum + 120+ effects |
| Control Methods | Bluetooth App + RF Remote |
| Power Source | 12V Vehicle System |
| Water Resistance | IP67 Rated (Weather Resistant) |
| Warranty | 1 Year Limited |
