LED Underglow Lighting Kit 3.0 | 4pc Flexible
Availability:
In stock
- $36.00
$69.00- $36.00
- Unit price
- per
Subtotal:
$36.00
10 customers are viewing this product
Couldn't load pickup availability
✨ Why You’ll Love This Mod
🔥 Full underglow lighting with vibrant flow effects
🔍 Millions of color options + music sync + animation modes
📱 Control with Bluetooth app or included handheld remote
💡 Ultra-bright LEDs for maximum nighttime visibility
🛠️ Universal fitment for cars, trucks, SUVs, and more
🌧️ Fully waterproof and road-ready year-round

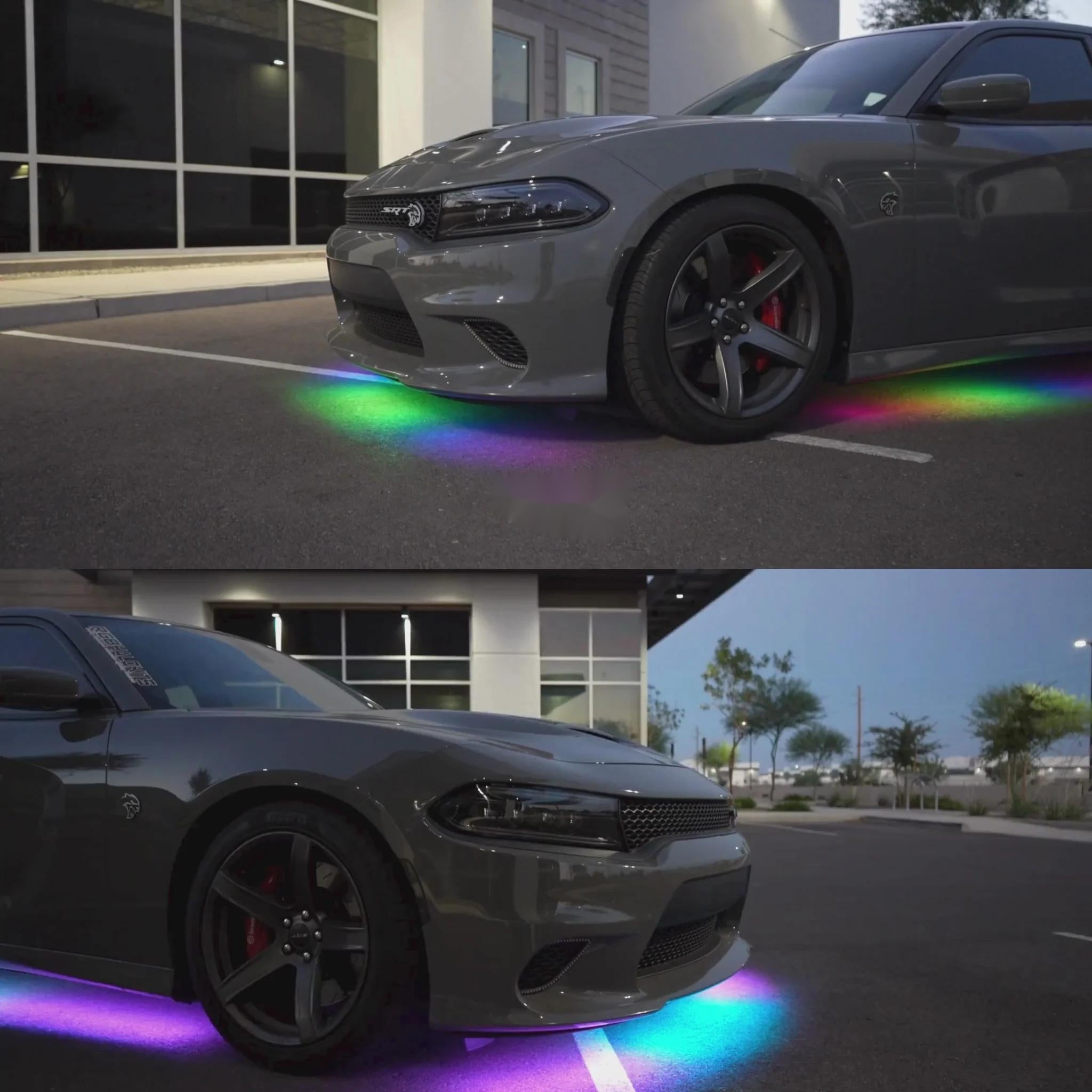

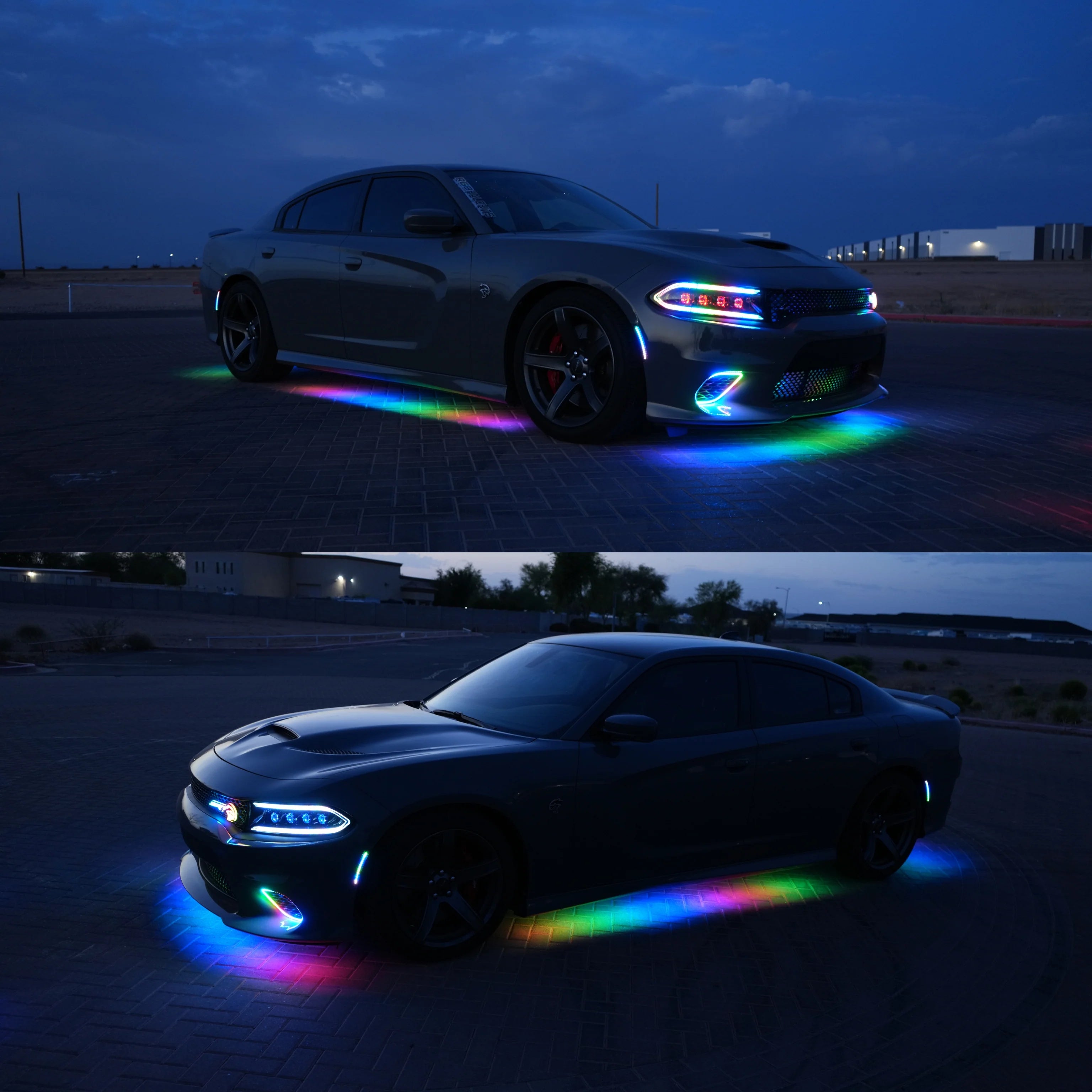

🔥 Upgrade Your Ride with Multicolor Underglow Lights Turn heads and transform your ride with our Standard Coverage LED Underglow Kit. Whether you’re showing off at a meet or cruising through the city, these vibrant LED strips bring your build to life with flowing color effects and seamless app + remote management.
Add style, attitude, and nighttime visibility in one powerful mod.
🎨 Full Multicolor Flow Effects
- 120+ Flow Series Color-Chasing Animations
- Millions options: red, blue, green, orange, pink, purple
- Music Sync: Lights react to pre-installed songs in the app. Mic input and custom music are not yet supported.
- Speed + Brightness Adjustments
📱 Bluetooth App + Remote Control
- 2-in-1 Control System: Use your phone or handheld remote
- Switch modes, colors, patterns, and brightness instantly
- Set timers and save custom presets
🌟 Kit Specs & Details
- (2) 60" LED Strips (sides)

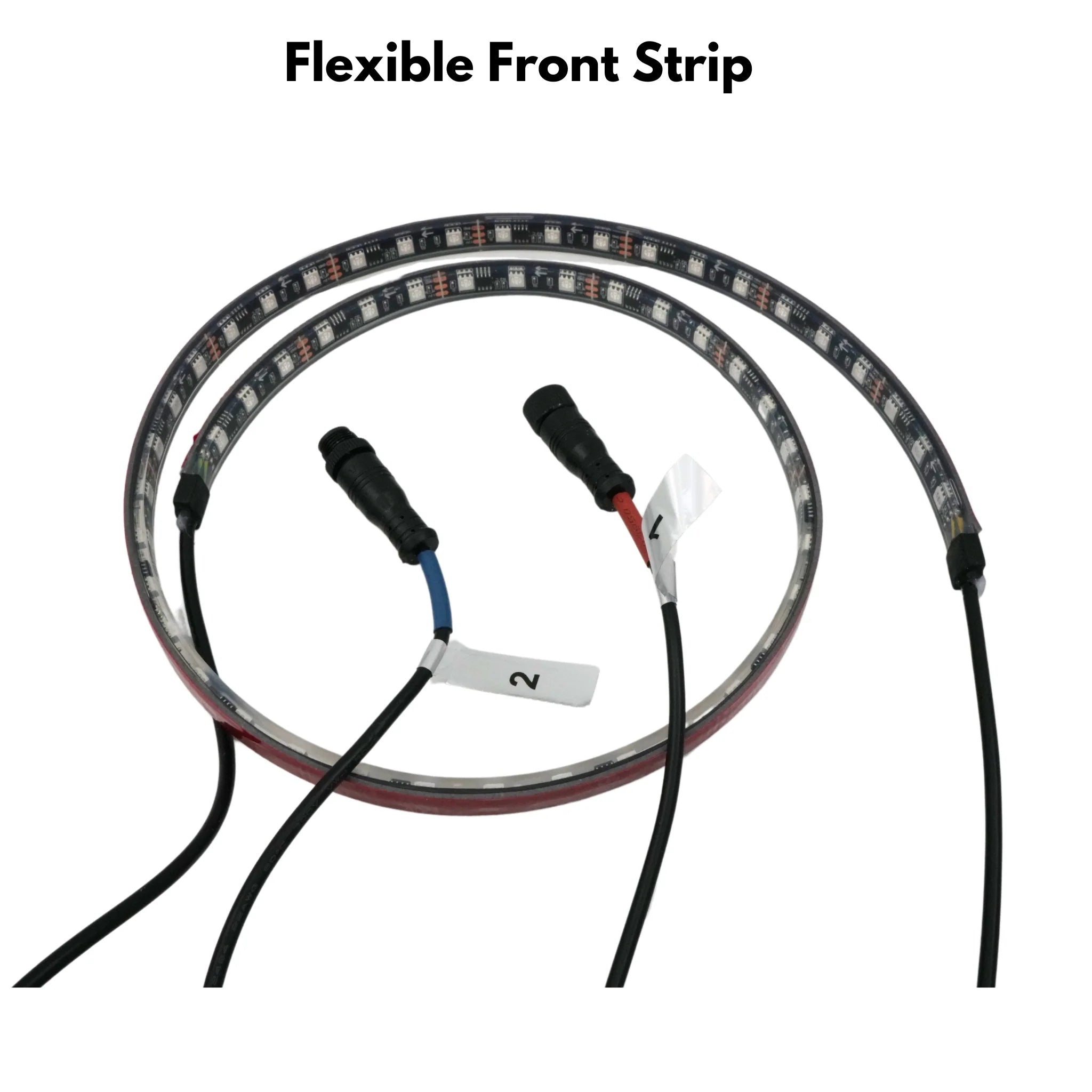

- (2) 36" LED Strips (front + rear)
- IP68 Waterproof Rating
- Heavy-duty strip materials + waterproof connectors
- Universal Fitment for all vehicle types
✨ Step-by-Step Installation Guide for Your Flexible 4pc Underglow Kit
🔧 Required Tools & Materials
- Rubbing alcohol + clean cloth
- Adhesive promoter (optional but recommended)
- Zip ties or wire clips (for wire management)
- Small daps of epoxy (optional for added hold)
- Wire tuck tools or panel poppers (optional)
✅ Install Overview
Mount Bluetooth Controller in front engine bay near the battery or fuse box.
Strip Direction Matters: All LED strips must flow front to back
Clean all mounting surfaces with alcohol to remove grease/dust.
Use adhesive promoter for surfaces like plastic or textured underbody.
Peel and stick strips down in this order:
- Front (1 strip)
- Sides (1 long strip per side)
- Rear (1 strip)
Use small daps of epoxy on both ends + center of each strip for extra hold.
Mounting brackets are included but rarely needed for the strips themselves. Instead, use them to secure wire runs under the vehicle. If needed for strips see diagram below.
Tuck interconnecting wires through fender liners (from front to sides, and sides to rear).
Connect strips to controller using labeled plug ends.
🚀 Controller Power & Wireless Relay Info
- This controller features a built-in wireless relay.
- After the controller is powered (wired to 12V), you must manually turn the remote ON.
- Use the remote ON/OFF only when the vehicle will be sitting for extended time.
- For regular use: control lights via the app.
🖉 Using the App
Download app from iOS or Android store.
Connect via Bluetooth and explore:
- Color changing modes
- Flow patterns
- Custom scenes
⚠️ Tips & Warnings
- Never cut or shorten strips
- Avoid mounting strips too close to the exhaust or moving suspension parts
- If 3M tape loses stick over time, epoxy or replacement tape can help
- Ideal to install in a clean, dry garage or out of direct sunlight
🔹 Reference Diagram
(See visual below. All arrows show required LED flow direction: front to back) [Insert diagram for 4pc kit with flow arrows]

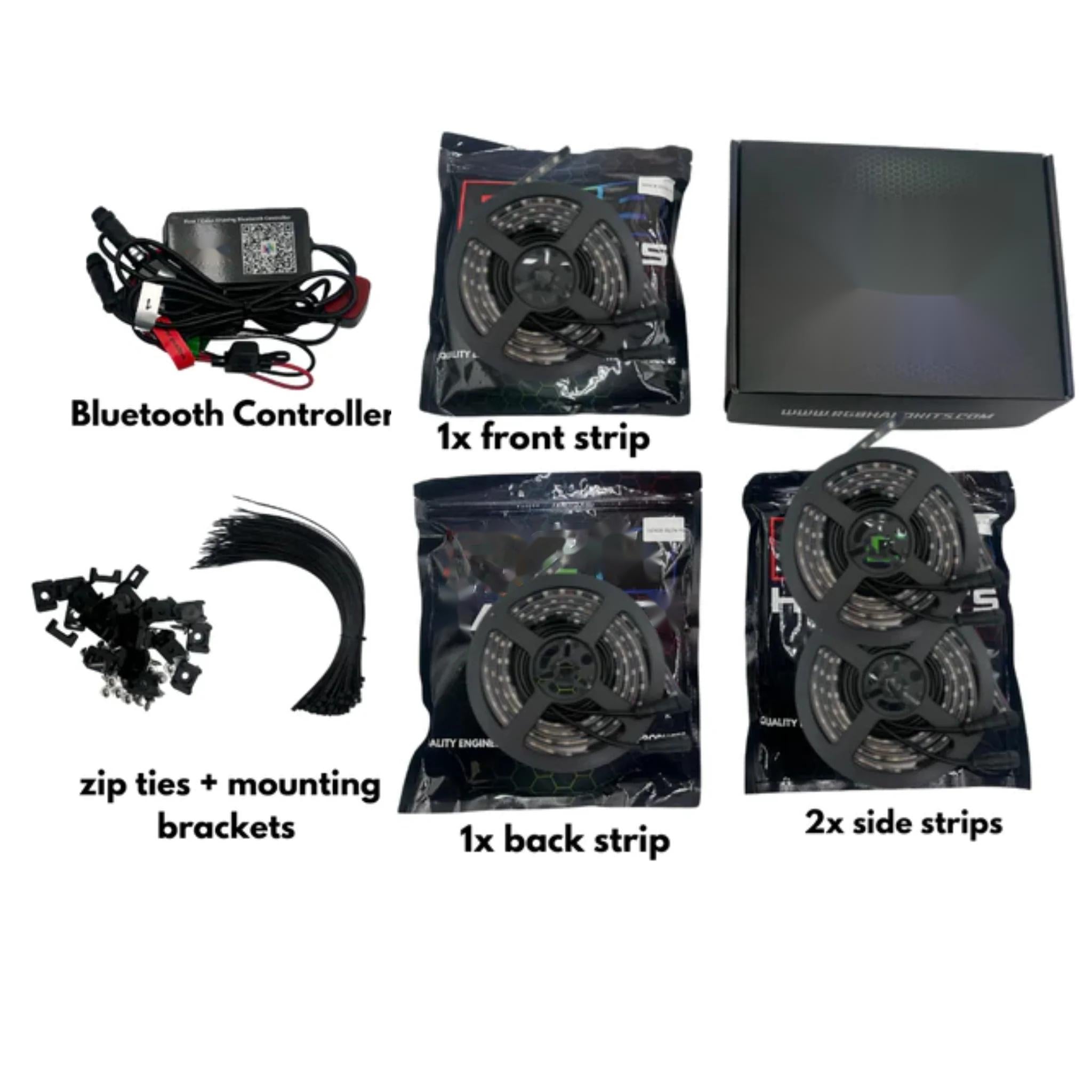

📆 What's Included
- 4x Underglow Strips (2x 60", 2x 36")
- 1x Bluetooth + Remote 2-in-1 LED Controller
- Mounting Brackets + Hardware
- Quick Start Wiring Guide
- QR Code for Full Installation Guide
🛡️ Warranty & Support
- 1-Year Warranty Included
- Optional 1–3 Year EXTEND Protection Available
- Backed by our expert team for install help and post-purchase support
